6r4 Type Dry Sump Tank

Loyalty Points

For every Euro, you spend you receive 1 point and each point is worth 1 cent so 500 points is worth €5. Use these points on your next order or let them accumulate towards future orders.
6r4 Type Dry Sump Tank
6r4 Type Dry Sump Tank
6r4 Type Dry Sump Tank
6r4 Type Dry Sump Tank
6r4 Type Dry Sump Tank
6r4 Type Dry Sump Tank
6r4 Type Dry Sump Tank
6r4 Type Dry Sump Tank
6r4 Type Dry Sump Tank
  • Stock: In Stock
  • Model: GRP4312
  • Weight: 2.15kg
  • UPC: GRP4312
  • JAN: M1
€447.35
Ex Tax: €363.70
Price in reward points: 36370

Available Options

The ultimate in dry sump Tanks,

Designed to give the maximum in De-aeration of the oil and special anti surge outlet to provide the ultimate in protection for your Engine.

Inlet and Outlet fittings are 5/8" bsp thread.

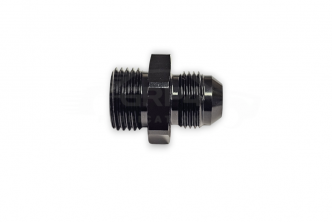

The breather outlet is also 5/8" bsp, which we have adaptors for Dash 12, Dash 10 but we recommend keep this to the biggest size possible, as the bigger hose slows down the breathing air speed which reduces any oil siphoning.


Customize your tank with our fitting options:

  1. Blanking Cap OnlyGRP6691 This standard fitting comes with every tank.
  2. Dip Stick Fitted – Replace the standard blanking cap with our dipstick.
  3. -8 threaded fittingGRP6667 For additional breathing in engines such as BDA (no dipstick or blanking cap included).
  4. -10 threaded fitting GRP6673 For extra breather requirement (no dipstick or blanking cap included).


Tank Specifications:

Height: 415mm.

Diameter: 200mm.

Base Plate: 215mm x 215mm.

Maximum capacity: Approximately 7 Litres (up to the internal baffle)
