Pedal boxes, Cylinders and accessories
-333x222.jpg "5/16 Unf Plain Nut Zinc")
Brand: AP RACING
Model: GRP3282/0.625
AP MASTER CYLINDER.0.625" BORE.SpecificationsBore Diameter0.625 (15.87 mm)Push Rod Thread5/16" UNF MaleInlet Port Thread7/16" UNF FemaleOutlet Port Thread3/8" UNF FemaleOutlet Port Angle0Mounting Flange Hole Spacing2.25" (57 mm)Flange to end of BodyLength80mm..
€236.78
Ex Tax:€192.50
Brand: AP RACING
Model: GRP3282/0.7
AP MASTER CYLINDER.
0.7" BORE.SpecificationsBore Diameter0.7 (17.78 mm)Push Rod Thread5/16" UNF MaleInlet Port Thread7/16" UNF FemaleOutlet Port Thread3/8" UNF FemaleOutlet Port Angle0Mounting Flange Hole Spacing2.25" (57 mm)Flange to end of BodyLength80mm..
€236.78
Ex Tax:€192.50
Brand: AP RACING
Model: GRP3282/0.75
AP MASTER CYLINDER. .0.75" BORE.SpecificationsBore Diameter0.75(19.05 mm)Push Rod Thread5/16" UNF MaleInlet Port Thread7/16" UNF FemaleOutlet Port Thread3/8" UNF FemaleOutlet Port Angle0Mounting Flange Hole Spacing2.25" (57 mm)Flange to end of BodyLength80mm..
€236.78
Ex Tax:€192.50
Brand: AP RACING
Model: GRP3282/0.8125
AP MASTER CYLINDER. .13/16"0.8125" BORE.SpecificationsBore Diameter0.8125 (20.64 mm)Push Rod Thread5/16" UNF MaleInlet Port Thread7/16" UNF FemaleOutlet Port Thread3/8" UNF FemaleOutlet Port Angle0Mounting Flange Hole Spacing2.25" (57 mm)Flange to end of BodyLength80mm..
€236.78
Ex Tax:€192.50
Brand: GRP4 FABRICATIONS
Model: GRP3320

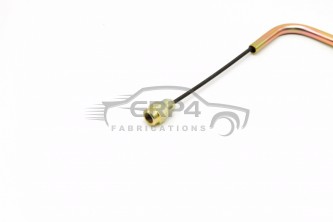

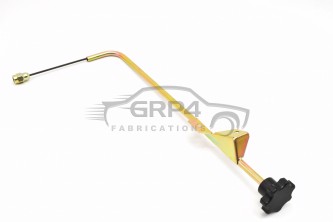

Brake Bias Adjuster Tube Type.
TIG welded and Zinc plated...
€49.11
Ex Tax:€39.93
Brand: GRP4 FABRICATIONS
Model: GRP3281-0.625
After market Master Cylinder. 0.625" bore.
SpecificationsBore Diameter0.625 (15.87 mm)Push Rod Thread5/16" UNF MaleInlet Port Thread7/16" UNF FemaleOutlet Port Thread3/8" UNF FemaleOutlet Port Angle45°Mounting Flange Hole Spacing2.25" (57 mm)Flange to end of Body Lenght105mm ..
€33.83
Ex Tax:€27.50
Brand: GRP4 FABRICATIONS
Model: GRP3281-0.75
After market Master Cylinder.0.75" Bore.SpecificationsBore Diameter0.75 (19.05 mm)Push Rod Thread5/16" UNF MaleInlet Port Thread7/16" UNF FemaleOutlet Port Thread3/8" UNF FemaleOutlet Port Angle45°Mounting Flange Hole Spacing2.25" (57 mm)Flange to end of Body Lenght105mm ..
€33.83
Ex Tax:€27.50
Out Of Stock
Brand: GIRLING
Model: GRP3280-0.625

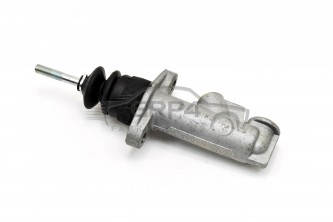

Girling Master Cylinder 0.625".0.625" Diameter Bore.
The original master cylinder as used in the 70's and 80's.SpecificationsBore Diameter0.625 (15.87 mm)Push Rod Thread5/16" UNF MaleInlet Port Thread7/16" UNF FemaleOutlet Port Thread3/8" UNF FemaleOutlet Port Angle45°Mounting Flange Hole Spacing2...
€80.98
Ex Tax:€65.84
Out Of Stock
Brand: GIRLING
Model: GRP3280-0.7
Girling Master Cylinder 0.70".0.70" Diameter Bore.The original master cylinder as used in the 70's and 80's.SpecificationsBore Diameter0.700" (17.8 mm)Push Rod Thread5/16" UNF MaleInlet Port Thread7/16" UNF FemaleOutlet Port Thread3/8" UNF FemaleOutlet Port Angle45°Mounting Flange Hole Spacing2.25" ..
€80.98
Ex Tax:€65.84
Out Of Stock
Brand: GIRLING
Model: GRP3280-0.75
Girling Master Cylinder 0.75.
0.75" Bore.
The original master cylinder as used in the 70's and 80's.SpecificationsBore Diameter0.750" (19.05)mmPush Rod Thread5/16" UNF MaleInlet Port Thread7/16" UNF FemaleOutlet Port Thread3/8" UNF FemaleOutlet Port Angle45°Mounting Flange Hole Spacing2.25" ..
€80.98
Ex Tax:€65.84
-333x222.png "HANDBRAKE CLEVIS NARROW TYPE")
-333x222w.png "HANDBRAKE CLEVIS NARROW TYPE")
Brand: GRP4 FABRICATIONS
Model: GRP3131
Alloy Clevis narrow type.40mm longDiameter 19mm5/16" unf thread8 mm hole 8mm wide slotBlack anodisedAs use on our MK1 and Mk2 Escort Hydraulic Pedalboxes..
€7.38
Ex Tax:€6.00
